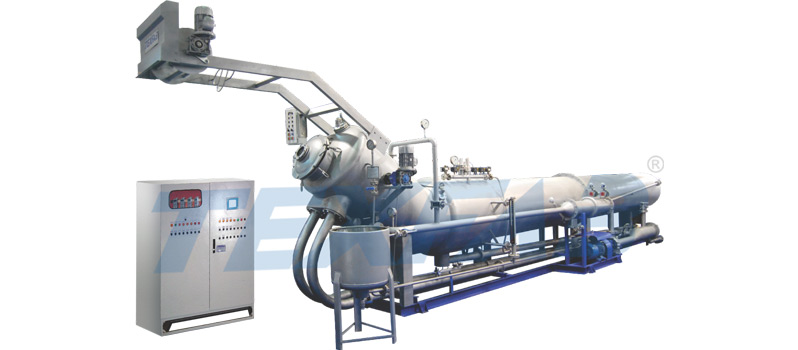

HTHP Long Tube Soft to High Flow Universal Fabric Dyeing Machine- Bottom Tube

‘TEXFAB’ High Speed High Flow Turbo Fabric Dyeing Machine/Scouring Machine is widely accepted because of its excellent performance and technical up-gradation, for fabric dyeing of woven material especially those materials sensitive to create marks such as polyester micro fiber etc. It minimizes some resistance and friction coefficient under high-speed circulation of fabric by new concept of design on the body structure.

Lifter reel driven by frequency inverter controlled motor, for fabrics speed upto 550 Mtrs / Min.

Highly efficient heat exchanger is a companion to the high fabric speed to ensure the shortest possible dyeing cycle, with fast heating and cooling.

Heavy duty Stainless Steel centrifugal pump for optional dye liquor circulation. Thanks to turbo pump which consumes low power and high discharge of liquor.

Pressure vessel and all wet parts of machine made of stainless steel AISI 316/316 highly corrosion resistant.

All flanges, plaiter, take off roller is made out of stainless steel 304.

Machine gives crimp effect as well as to realize soft touch and solid sense of materials to be dye.

Bigger capacity colour Kitchen tank is available with stirrer and valves.

All safety devices required for a pressure vessel are incorporated with the machine.

Out finish Shot Blasted.

Magnetic level indicator with duly calibrated in terms of liter

Reversing nozzle for tangling release system.

• Feed pump to colour Kitchen Tank.
• Seam Detector.
• Fully automatic device with PLC and Pneumatic Operated
• Control Values.
